| BRAND | GRAPHITE DESIGN |
| MODEL | IRON |

The Tour AD DI “DEEP IMPACT” is designed to provide golfers with more power and stability in their golf shaft. Designed and manufactured exclusively at the Graphite Design factory headquarters in Japan, the Tour AD DI orange and black colored options are available in 50g R2 (Lite), R1 (Regular) S and X flex, 60g SR (Stiff Regular), S, X and TX (Tour X-Stiff) flex, 70g S, X and TX (Tour X-Stiff) flex and 80g S, X and TX (Tour X-Stiff) flex.
The Tour AD DI 5-R2, R1 and S flex, 6-SR, S and X flex, 7-S and X flex and 8-S and X are available in two color schemes orange with white bands and green rings and a 2nd color option of black with white bands and silver rings. The Tour AD DI 5-X, 6-TX, 7-TX, 8-TX and 9-X flex shafts are available only in the orange color scheme.
The Tour AD DI is our first shaft design that was integrated with Toray Company’s original NANOALLOY material technology in the tip section of the shaft. This material technology has now come to be known as “DI Technology”. This unique material technology promotes additionally shaft stability without the loss of feel and allows the player to create greater club head speed resulting in greater ball speed while still providing exceptional feel and control.
The Tour AD DI also utilizes premium, aerospace quality 50t carbon-fiber materials to provide the best performing shaft available. The softer mid-section bend profile of the Tour AD DI allows the player to load the shaft properly, yet it maintains a firm enough tip section through impact promoting a high launch and low spin ball flight condition. The result, the Tour AD DI delivers players to the next level in shaft performance and will create a “DEEP IMPACT” on your game! Revolutionary technology, design and the most advanced materials are trademarks in all Graphite Design shafts, resulting in the highest quality premium golf shafts on the market today. Validating the company’s “Tour AD” logo, all of Graphite Design’s Tour proven shafts are specifically designed to promote a gain in Accuracy and Distance.

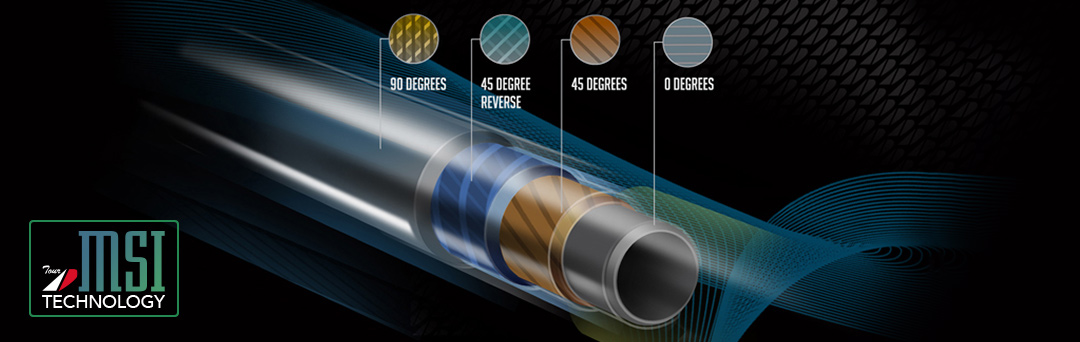

Tech – MSI Technology

Material Stiffness Integration, MSI, is the main design concept by which Graphite Design develops its premium golf shafts. Composite materials consist of two main components, graphite fibers and resin. The stiffness of the many different fiber types that Graphite Design utilizes has an impact on how the shaft profile bends in relation to the player’s input during the swing. The resin not only helps to maintain the structural integrity of the shaft but also acts more like a sponge, absorbing unwanted vibrations to help create the exquisite feel that Graphite Design shafts are so well known for.
By using proprietary design formulas and a combination of different materials that vary in stiffness, resin content and fiber volume, Graphite Design is able to design shafts that results in superior feel when compared to other shaft manufactures and deliver the Perfect ACCURACY and Pure DISTANCE that golfers desire in a shaft.
Features:
- High modulus, premium, aerospace quality carbon fiber materials.
- Graphite Design proprietary Material Stiffness Integration (MSI) design philosophy and technology.
Bend Profile:
| Shafts | BUTT Section | MID Section | TIP Section |
|---|---|---|---|
| Tour AD-85 Driving Iron | STIFF | FIRM | MEDIUM |
| Tour AD-95 Driving Iron | STIFF | FIRM | FIRM |
Performance:
- Designed to work with today’s modern Driving Iron heads and to promote Mid launch angles and Mid spin rate.
- MSRP – AD 85g – 95g: $140
Fitting:
| 96-105 MPH | 105+ MPH |
|---|---|
| S Flex (Stiff) |
X Flex (X-Stiff) |
Shaft Flex Fitting recommendations are based on the player’s Driver Swing Speed
Tip Trimming:
The Tour AD Iron shafts are all .355″ Taper Tip shafts, therefore Pro’s Choice recommends only Butt Trimming them to your desired club length.
- Pro’s Choice encourages consulting a PGA Professional or qualified club builder to help you determine the correct shaft and length for your swing profile and to meet your goals.
- Improper installation may effect the intended performance of the shaft. Warranty is for material and workmanship of our products. Improper installation voids warranty of product.
Specifications:
| Shaft Type | Part Number | Color | Flex | Length | Wt. | Tip OD | Tip Para. | Butt OD | Torque | Kick pt | Launch | Spin |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TOUR AD DRIVING IRON 85g Stiff #3 Orange | AD85DINC-S03 | DI Orange/White | Stiff | 39″ | 89g | .355″ | Taper | .593″ | 2.4 | MID | MID | MID |
| TOUR AD DRIVING IRON 95g Stiff #3 Orange | AD95DINC-S3 | DI Orange/White | Stiff | 39″ | 98g | .355″ | Taper | .593″ | 2.2 | MID | MID | MID |
| TOUR AD DRIVING IRON 95g Stiff #4 Orange | AD95DINC-S4 | DI Orange/White | Stiff | 38.5″ | 98g | .355″ | Taper | .593″ | 2.2 | MID | MID | MID |
| TOUR AD DRIVING IRON 95g Stiff #5 Orange | AD95DINC-S5 | DI Orange/White | Stiff | 38″ | 98g | .355″ | Taper | .593″ | 2.2 | MID | MID | MID |
| TOUR AD DRIVING IRON 95g X- Stiff #3 Orange | AD95DINC-X3 | DI Orange/White | X-Stiff | 39″ | 99g | .355″ | Taper | .593″ | 2.2 | MID | MID | MID |
| TOUR AD DRIVING IRON 95g X- Stiff #4 Orange | AD95DINC-X4 | DI Orange/White | X-Stiff | 38.5″ | 99g | .355″ | Taper | .594″ | 2.2 | MID | MID | MID |
| TOUR AD DRIVING IRON 95g X- Stiff #5 Orange | AD95DINC-X5 | DI Orange/White | X-Stiff | 38″ | 99g | .355″ | Taper | .594″ | 2.2 | MID | MID | MID |
| TOUR AD DRIVING IRON 85g Stiff #3 Black | AD85B-S03 | Black/White | Stiff | 39″ | 89g | .355″ | Taper | .593″ | 2.4 | MID | MID | MID |
| TOUR AD DRIVING IRON 95g Stiff #3 Black | AD95B-S03 | Black/White | Stiff | 39″ | 98g | .355″ | Taper | .593″ | 2.2 | MID | MID | MID |
| TOUR AD DRIVING IRON 95g X-Stiff #3 Black | AD95B-X03 | Black/White | X-Stiff | 39″ | 99g | .355″ | Taper | .593″ | 2.2 | MID | MID | MID |
